Da Vinci 1.0 Extruder Thermistor Properties

The Da Vinci 1.0 has a small NTC thermistor embedded in the extruder. This provides the printer with temperature measurements of the extruder.

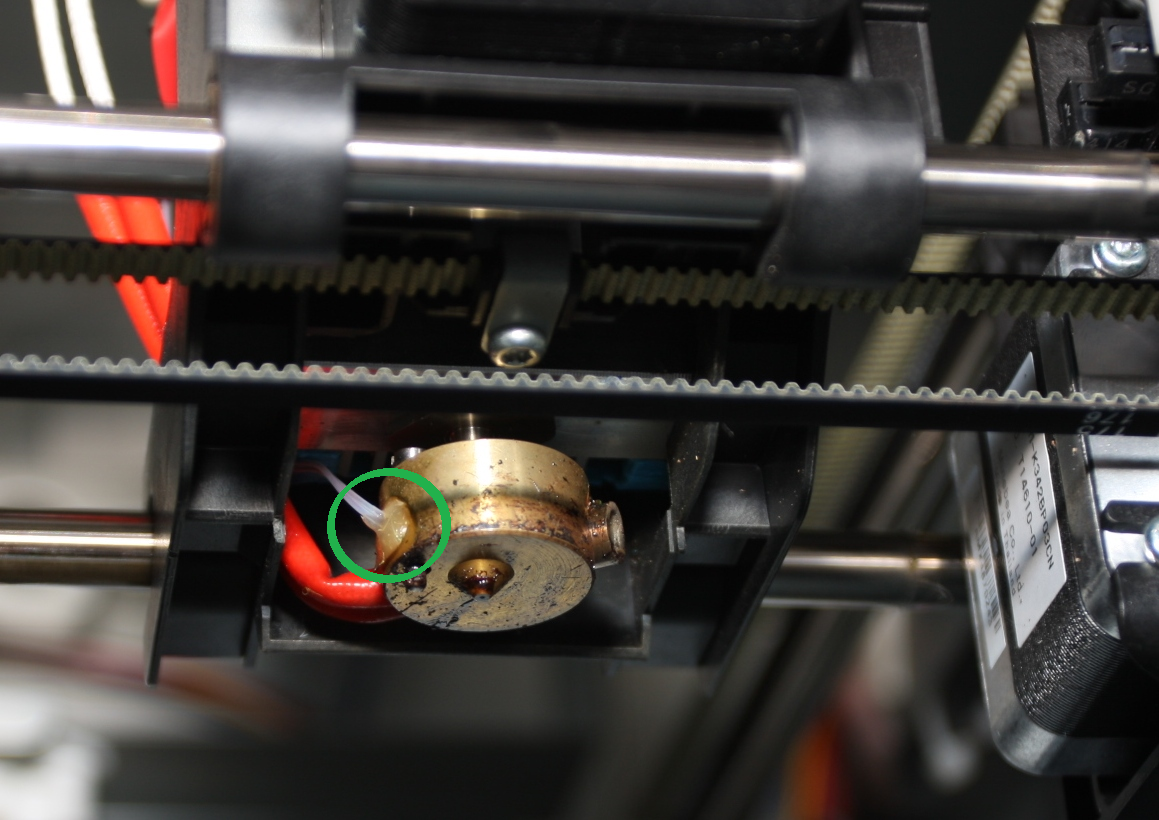

Da Vinci 1.0 extruder thermistor shown in green
Da Vinci 1.0 extruder thermistor shown in green

After some experimenting, the extruder’s thermistor temperature response curve has been inferred through substituting known values of resistance for the thermistor. All the measured values have been compiled.
