MJE3055 Power Transistor Teardown

Whats inside a power transistor? Well some semiconductor to be a transistor of course. How large would you expect the transistor’s die to be?

My guess is, that for a device that can conduct up to 10 A, the die would occupy the bulk of the transistor’s package. What’s your guess?

MJE3055 NPN transistor
An MJE3055 NPN transistor ready to be dismembered.

Lets find out with a teardown of sorts with the following MJE3055 NPN power transistor that comes in a TO-220 package.

With no access to an X-ray machine to photograph the device’s internals or even fuming nitric acid to de-cap the device, I had to look to other methods. My choice, brute force.

The brute force method is much more accessible to the masses. All you need is: a clamp, a needle file, some 180 grit sandpaper and a spare 1 hour.

IMG_3926
MJE3055 held in position using a clamp.

Before we get too far, some quick specs on the MJE3055 NPN transistor:

  • “…designed for use in general-purpose amplifier and switching applications”
  • Maximum collector current (Ic) = 10A. – The maximum current (within limits) that device can conduct from collector to emitter.
  • Maximum collector-Emitter voltage (Vceo) = 60Vdc. – The maximum voltage drop across the collector and emitter.
  • Maximum power dissipation (Pd) = 75W.

The device’s pinout is shown next, note that the metal tab is also electrically connected to the Collector pin.

Pinout for MJE3055 transistor
MJE3055 pinout

The dissection process was simple. Clamp the transistor in place using its metal tab and use a 5mm wide needle file to slowly remove the plastic packaging. This proved to be slow, so some 180 grit wet-and-dry sandpaper was wrapped around the file to increase the rate of plastic removal.

IMG_3928
Beginning to remove MJE3055 plastic case

After some time (15 minutes?), not much had happened, probably 1-2mm of plastic removed.

IMG_3933
About 1 mm of plastic removed.

Back to filing and finally something. Two bond wires coming from the Base (bottom pin) and the Emitter (top pin) both going towards the centre of the device.

IMG_3934
Bond wires within the MJE3055

The bond wires are not very thick because all that remains are vertical sections of the bond wire. Their small diameter was not expected.

IMG_3935
Horizontal section of bond wires removed. All that remain are 4 small dots of the bond wires that are vertical.

Next, the Base pin is exposed. The salmon colour is of the metal is certainly copper.

IMG_3938
Base pin begins to be exposed.

More filing to expose both the Base and Emitter pins within the device.

IMG_3941
Base and Emitter pins within the MJE3055 are exposed.

Finally, the Collector’s copper pin is revealed.

IMG_3943

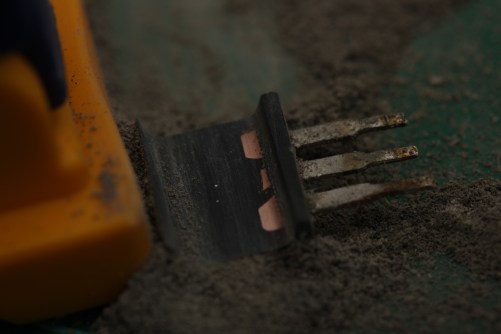

Collector pin is exposed. Two dots for the bond wires can still be seen in the package’s centre.

The Base and Emitter pins thickness has been filed through. Interestingly, the Collector pin bends down towards the metal case. Referring to the device’s pinout, the case and centre pin are both joined.

IMG_3947
Base and Emitter pins removed. Collector pin has been cut through. Bond wires to the centre still remain.

The bond wires become thicker and an outline to the left of the bond wires emerges. Could this be the die?

IMG_3954
Bond wires have enlarged and an outline to the left of the bond wires emerges.

The rate of filing now slowed.

IMG_3955

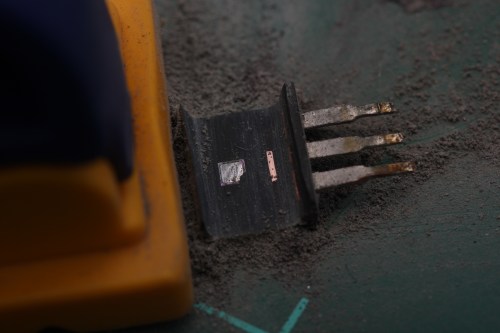

Die has been exposed. Still a bit more plastic can be removed.

A closeup shot of the die. The filing has scratched the top left of the die, but the centre reveals a pattern of interlocking fingers. Also, what also appears to be weld spots for the bond wires in the centre of the die can be seen.

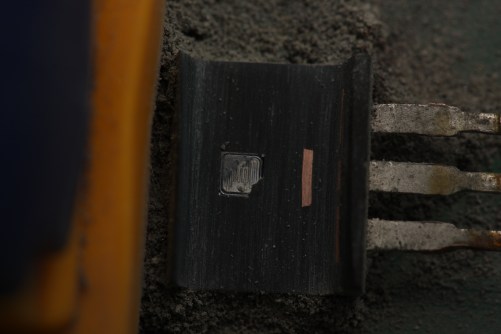

IMG_3957
Bond wire weld spots can be seen in the centre.

A bit more filing has exposed the perimeter of the die, but almost all of the die’s surface detail has been scratched off unfortunately.

IMG_3960
Perimeter of die exposed. Its dimensions are 1.8 mm x 1.8 mm.

I decided to stop at this point otherwise the whole die would be removed. Using some calipers, the die was measured to be about 1.8 mm x 1.8 mm. A very rough guess at the thickness of the die was made to be 0.25 mm thick. The total thickness of the remaining material (1.7 mm) minus the metal tab thickness (1.45 mm) gives a value of 0.25 mm.

Surprisingly, the transistor die was smaller than I expected – I assumed that the transistor semiconductor would occupy the bulk of the package. What was also unexpected was the fine gauge of the bond wires, particularly the emitter bond wire which can conduct up to 10 A.

For record’s sake, all of the spent sandpaper and the needle file that was used.

IMG_3962
